Calculate conical spring stress at solid height

keyword
springdesign
conicalsprings

Question Dylan 2021/7/2(Fri) 11:05

Good day. I came across your website while designing conical spring. Some spring design at solid height the coil sits on each other, other spring design the solid height is the wire diameter. Are you able to share example on how to calculate the spring stress at solid height? Thank you.

Answer Tokai Spring 2021/7/7(Wed) 12:37

Dear Mr. Dylan,

Please find attached the answer to your question. If you have any other concerns, please let us know anytime!

Best regards,

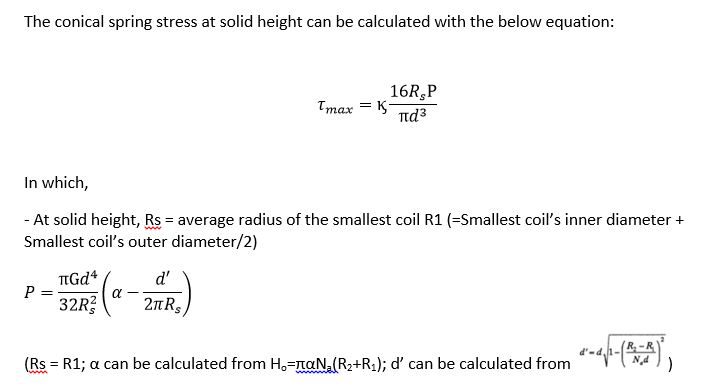

Attachments:

Add a comment


<a href="" title="" rel="" target=""> <blockquote cite=""> <code> <pre class=""> <em> <strong> <del datetime="" cite=""> <ins datetime="" cite=""> <ul> <ol start=""> <li> <img src="" border="" alt="" height="" width="">

Upload Attachments

Maximum file size allowed is 4 MB.



Add another file

We are happy to answer any inquiries regarding technology, specifications, materials, etc. Please feel free to ask.
